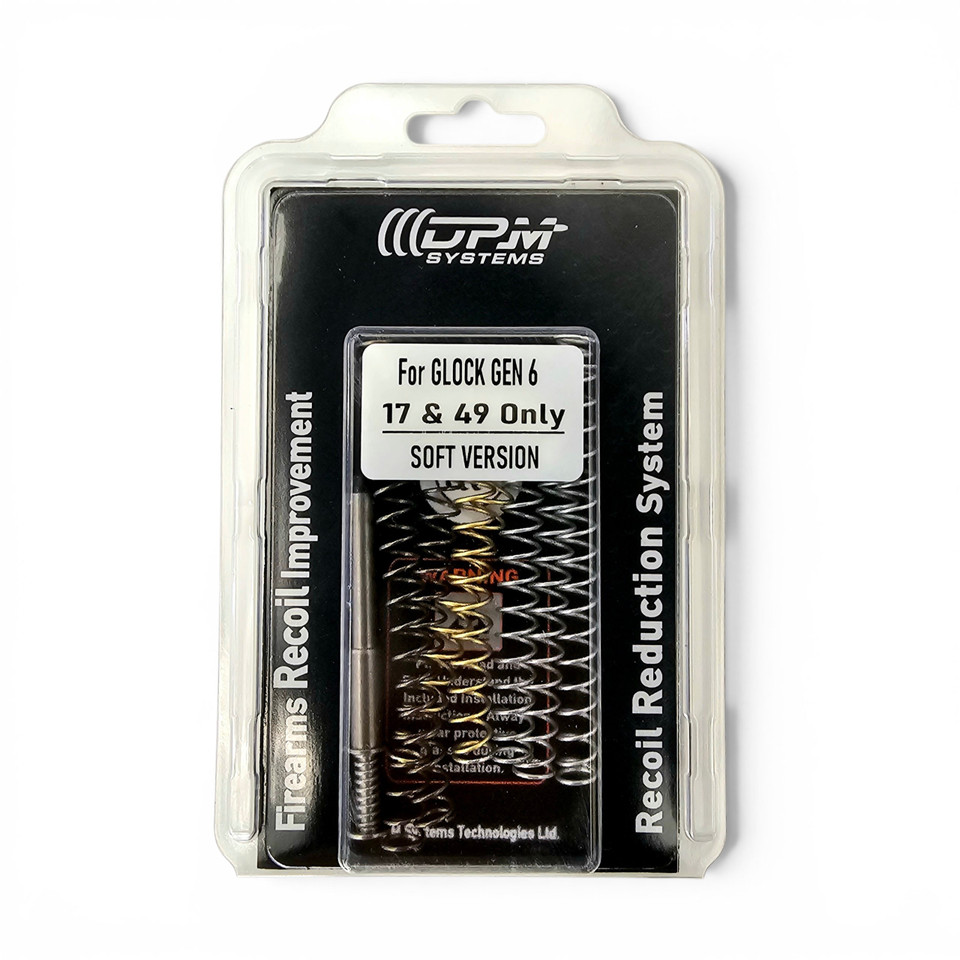

DPM Adjustable Recoil Management System for Glock 17 & Glock 49 Gen 6, Soft Version

DPM Adjustable Recoil Management System for Glock 17 & Glock 49 Gen 6, Soft Version

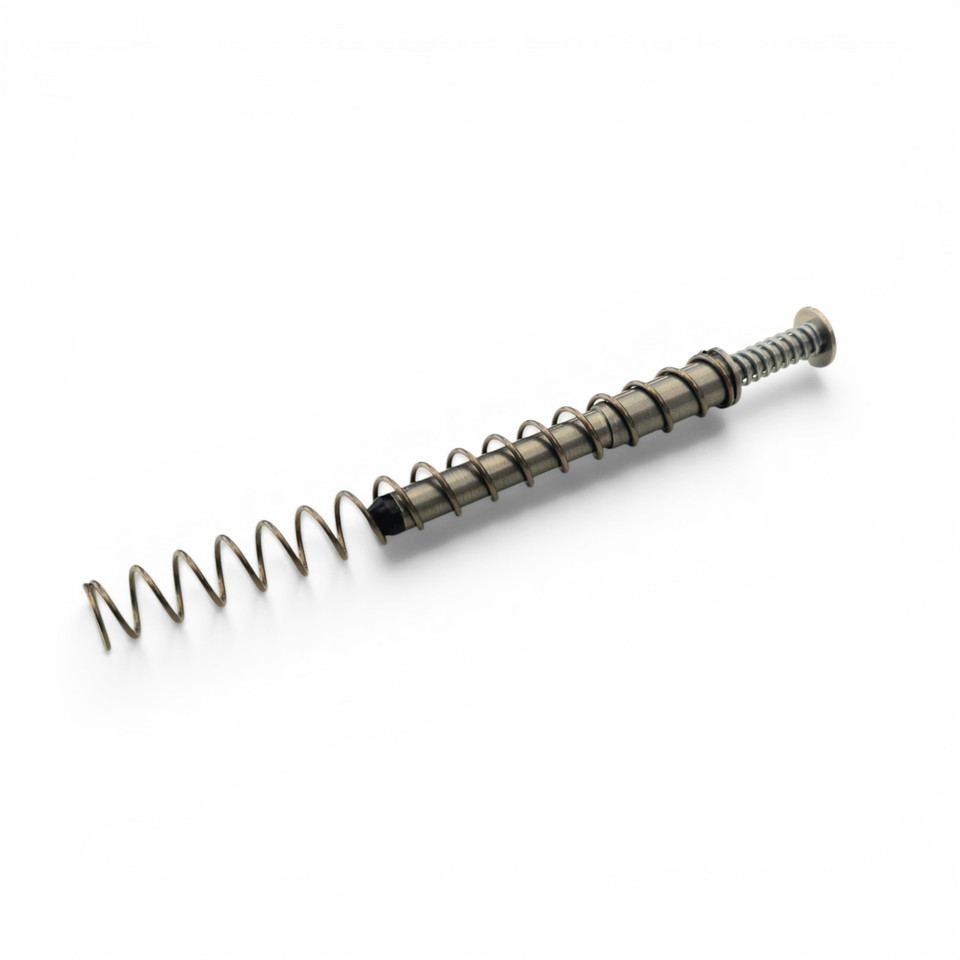

The DPM Adjustable Recoil Management System is a direct-replacement recoil assembly designed for Glock 17 and Glock 49 Gen 6 pistols. It replaces the factory single flat-wire recoil spring configuration with DPM's Progressive Triple Spring Technology and seven interchangeable external spring settings, giving shooters greater control over slide movement and recoil characteristics.

The Soft Version is specifically configured for compensated and ported pistols as well as softer ammunition. Its interchangeable spring combinations allow the recoil system to be tuned to the ammunition and setup being used.

Why Choose the DPM Recoil Management System?

The factory Gen 6 recoil assembly provides a simplified single-spring configuration. The DPM system adds multiple tuning options in a direct-replacement assembly, allowing the user to select different spring combinations based on ammunition, firearm configuration, and shooting requirements.

• Progressive Triple Spring Technology
• Seven interchangeable external spring settings
• Designed specifically for Glock 17 and Glock 49 Gen 6 pistols
• Soft Version intended for compensated and ported setups
• Suitable for tuning with softer ammunition
• Provides adjustable slide regulation and recoil characteristics
• Direct replacement for the factory recoil assembly

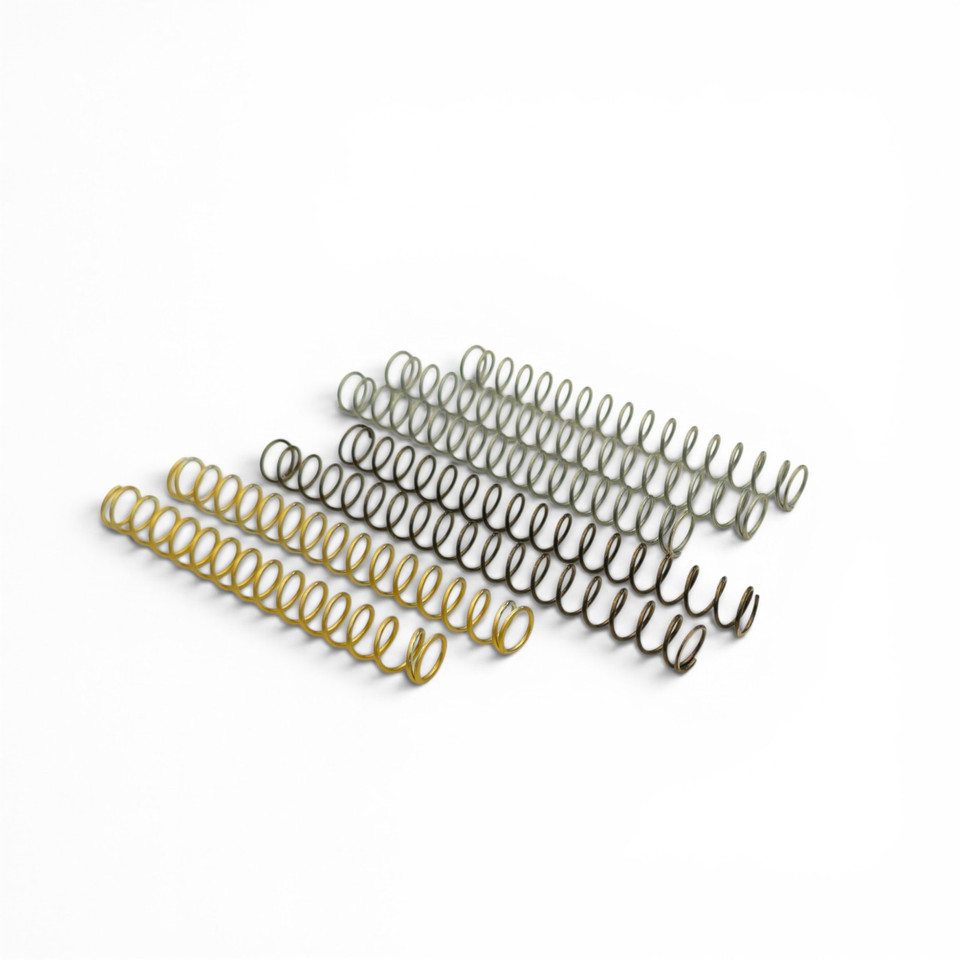

Seven Adjustable Spring Settings

The included springs provide seven selectable configurations. Spring selection can be tailored to ammunition power factor, shooting style, firearm configuration, and operating conditions.

Soft Springs - 1.0 mm, Black

• Short spring: 7.5 lb with slide in battery
• Long spring: 7.9 lb with slide in battery

Standard Springs - 1.05 mm, Gray

• Short spring: 6.85 lb with slide in battery
• Medium spring: 7.5 lb with slide in battery
• Long spring: 8.15 lb with slide in battery

Heavier Springs - 1.1 mm, Gold

• Short spring: 7.7 lb with slide in battery
• Long spring: 8.15 lb with slide in battery

Slide fully open: Approximately 19 lb.

Compatibility

The DPM Adjustable Recoil Management System Soft Version is designed for Glock 17 and Glock 49 Gen 6 pistols.

Not Compatible

This system is not intended for Glock generations or models other than those specifically identified by DPM. Verify your pistol model and generation before installation.

Specifications

• Manufacturer: DPM Systems
• Product Type: Adjustable recoil management system
• Version: Soft
• Compatible Models: Glock 17 Gen 6, Glock 49 Gen 6
• Spring Technology: Progressive Triple Spring Technology
• Spring Settings: 7
• Soft Springs: 1.0 mm, black
• Standard Springs: 1.05 mm, gray
• Heavier Springs: 1.1 mm, gold
• Open-Slide Spring Force: Approximately 19 lb

Important Notes

Spring selection can affect cycling behavior and should be matched to the ammunition and configuration of the pistol. Confirm reliable function after installation and whenever changing spring combinations.

This product is not manufactured, authorized, endorsed, or warranted by GLOCK. GLOCK does not warrant or represent that this product is compatible with GLOCK pistols.

Frequently Asked Questions

What Glock pistols does this DPM recoil system fit?

This DPM Soft Version is designed for Glock 17 Gen 6 and Glock 49 Gen 6 pistols. Verify the model and generation before purchasing.

What is the difference between the Soft Version and other DPM recoil systems?

The Soft Version is configured for applications including compensated and ported pistols and softer ammunition. It provides spring combinations intended to offer appropriate tuning flexibility for these setups.

How many spring settings are included?

The system includes seven interchangeable external spring settings: two soft springs, three standard springs, and two heavier springs.

Can I change the recoil spring setting?

Yes. The DPM system is designed to allow spring selection based on the ammunition, firearm configuration, and desired cycling characteristics.

What are the spring weights?

The included springs range from 6.85 lb to 8.15 lb with the slide in battery, depending on the selected spring. With the slide fully open, the spring force is approximately 19 lb.

Is this a drop-in replacement for the factory recoil assembly?

The DPM system is designed as a direct replacement for the factory recoil assembly on compatible Glock 17 and Glock 49 Gen 6 pistols. Follow the manufacturer's installation instructions.

Does GLOCK make or endorse this recoil system?

No. DPM Systems is an independent manufacturer. This product is not manufactured, authorized, endorsed, or warranted by GLOCK.

The DPM Adjustable Recoil Management System Soft Version provides Glock 17 and Glock 49 Gen 6 owners with seven spring configurations in one adjustable recoil assembly. For compensated, ported, and soft-ammunition setups, it offers a practical way to tune recoil system characteristics to the specific configuration.
