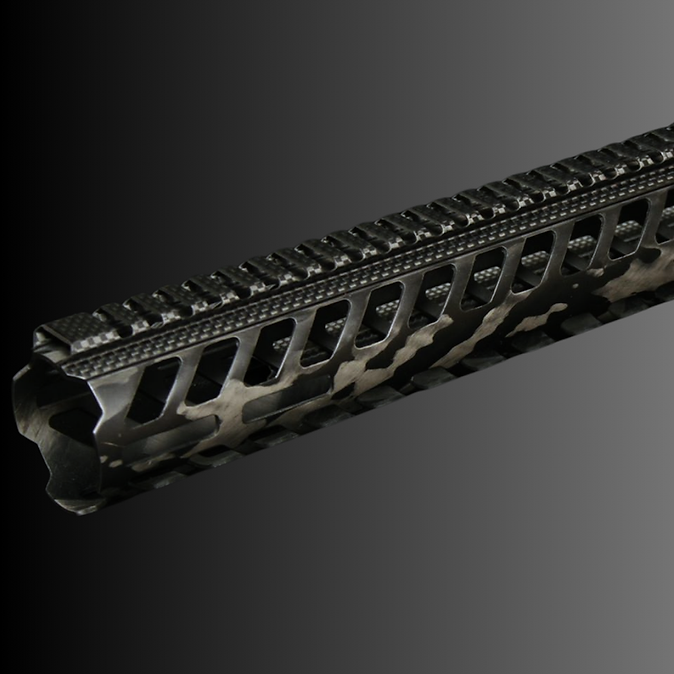

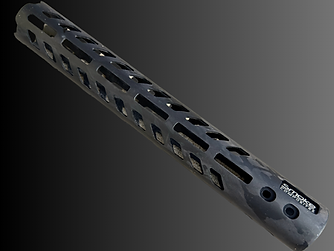

Smoke Composites AR-15 Carbon Fiber Free Float Handguard

Smoke Composites AR-15 Carbon Fiber Free Float Handguard

Build a lighter, more maneuverable AR-15 with the Smoke Composites Carbon Fiber Free Float Handguard. Precision-built for shooters who prioritize weight savings without compromising a rigid, comfortable support-hand interface, these free-float handguards combine carbon fiber construction with a slim, ergonomic profile. Available in multiple lengths to match your barrel and build configuration.

Ultra-Lightweight Carbon Fiber Performance

Every ounce matters on a performance-focused rifle. Smoke Composites AR-15 handguards deliver substantial weight savings across the available length options, helping reduce front-end weight for improved handling and maneuverability.

Free-Float Design and Ergonomic Handling

The free-float configuration helps keep the handguard isolated from the barrel while providing a natural, secure grip surface. Carbon fiber construction offers strong, rigid support with heat-resistant properties suited to demanding shooting conditions.

Key Features

• Carbon fiber free-float handguard for AR-15 platforms
• Ultra-lightweight construction for reduced front-end weight
• Rigid, impact-resistant design for demanding rifle builds
• Slim, ergonomic profile for natural support-hand control
• Available in 7.25 in., 10 in., 12 in., and 15 in. lengths
• Includes barrel nut with each handguard
• Compatible with gas blocks measuring 0.750 in. or smaller

Handguard Weight by Length

• 7.25 in.: 3.70 oz.
• 10 in.: 4.60 oz.
• 12 in.: 5.10 oz.
• 15 in.: 5.41 oz.

Specifications

• Brand: Smoke Composites
• Platform: AR-15
• Product Type: Free-float handguard
• Material: Carbon fiber
• Inside Diameter: 1.786 in.
• Outside Diameter: 1.932 in.
• Barrel Nut Weight: 1.30 oz.
• Barrel Nut Torque Range: 35–80 ft-lb
• Required Barrel Nut Tool: 1.25 in. crowfoot wrench, 0.375–0.50 in. thick

Compatibility

• Designed for AR-15 builds.
• Fits gas blocks measuring 0.750 in. or smaller.
• Each handguard includes one barrel nut.

Top Rail Information

• Top rails are bonded to the handguard and must be ordered with the handguard.
• Top rails cannot be added after the handguard has been ordered or assembled.
• Large-frame top rails are configured for DPMS high-profile receivers with a 0.210 in. rail height.
• For DPMS low-profile receivers with a 0.150 in. rail height, contact Smoke Composites before ordering.

Custom Length Handguards

Custom-length handguards may be available to customer specifications for an additional $40, plus any applicable additional fees. Contact Smoke Composites directly at info@smokecomposites.com for custom-order details.

Important Notes

• Verify gas-block diameter, barrel length, receiver type, and desired handguard length before ordering.
• For gas blocks larger than 0.750 in., contact Smoke Composites to confirm compatibility.
• Use a properly sized 1.25 in. crowfoot wrench with a thickness between 0.375 in. and 0.50 in. when installing the barrel nut.
• Follow the listed 35–80 ft-lb barrel-nut torque range and all applicable manufacturer installation guidance.
• Professional installation is recommended if you are not experienced with AR-15 assembly.

Frequently Asked Questions

What AR-15 handguard lengths are available?

The Smoke Composites Carbon Fiber Free Float Handguard is available in 7.25 in., 10 in., 12 in., and 15 in. lengths.

How much do these carbon fiber AR-15 handguards weigh?

Weights range from 3.70 oz. for the 7.25 in. model to 5.41 oz. for the 15 in. model, depending on handguard length.

Is the barrel nut included with the handguard?

Yes. Each Smoke Composites handguard includes one barrel nut. Additional barrel nuts may be ordered separately if needed.

What gas block sizes fit inside this handguard?

The handguard fits gas blocks measuring 0.750 in. or smaller. Contact Smoke Composites for guidance if your gas block is larger than 0.750 in.

What are the inside and outside diameters?

The handguard has a 1.786 in. inside diameter and a 1.932 in. outside diameter.

What tool is needed to install the barrel nut?

Installation requires a 1.25 in. crowfoot wrench measuring 0.375–0.50 in. thick. The specified barrel-nut torque range is 35–80 ft-lb.

Can I add a top rail later?

No. Top rails are bonded to the handguard and must be ordered at the same time as the handguard.

Are custom-length AR-15 handguards available?

Yes. Custom lengths may be available for an additional $40 plus applicable fees. Contact Smoke Composites directly for custom-order information.

For a lightweight AR-15 build that demands a rigid, comfortable, and purpose-built free-float handguard, Smoke Composites Carbon Fiber Handguards deliver a refined balance of low weight, usable strength, and clean ergonomics.
