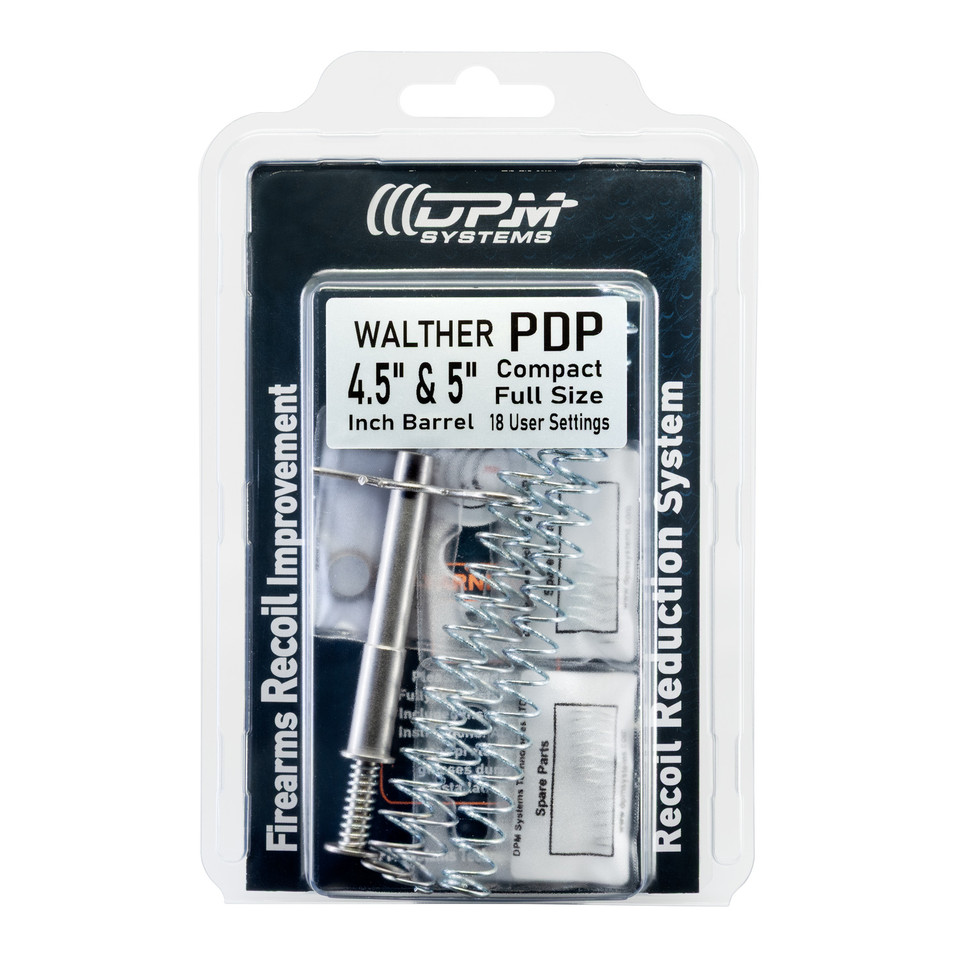

DPM Mechanical Recoil Reduction System | Walther PDP 4.5" & 5" Barrels (18 Adjustable Settings)

Overview: The DPM Mechanical Recoil Reduction System for Walther PDP (4.5" & 5" barrels) is a direct replacement for the factory guide rod that gives you precise, user-adjustable recoil control. The kit uses multiple external and buffer springs so you can tune slide opening and locking forces to match compensators, ammo power, and personal preference — resulting in faster follow-ups, fewer malfunctions, and reduced felt recoil.

Compatibility

Compatible: Walther PDP 4.5" & 5.0" (also fits PDP Full Size 5.1" or Pro SD / steel & polymer frames).
Not compatible: 4.0" barrel models and PRO SD 4.6".

Important

The kit includes external springs, multiple buffer recoil springs, a washer and a safety pin. Product versions may change without notice.
Try different external + buffer spring combinations to fine-tune function for your ammo and setup.

What’s Included

DPM Recoil Mechanism (direct replacement guide rod)
3 external springs (different lengths/powers)
6 buffer recoil springs (three soft 0.7mm + three standard/heavy 0.8mm)
1 Washer (install as instructed)
1 Safety pin and installation instructions

Power Ratings |

DPM Mechanical Recoil Reduction System for Walther PDP 4.5” & 5” — drop-in adjustable recoil rod with 3 external springs and 6 buffer springs (18 tuning combinations). Reduce recoil, protect slide/frame, eliminate jams, and fine-tune performance for compensators and varied ammo. Lifetime warranty.

Buffer Springs (Slide Full Open & Slide in Battery)

Soft buffer set — 0.7mm wire diameter

Short: 8.0 kg / 17 lbs
Medium: 9.0 kg / 20 lbs
Long: 10.0 kg / 22 lbs

Standard / Heavy buffer set — 0.8mm wire diameter

Short: 8.5 kg / 18.7 lbs
Medium: 9.5 kg / 21 lbs
Long: 10.5 kg / 23 lbs

Suggestion: For very low-power ammunition it may not be necessary to use any buffer springs. In that configuration the system in full open position offers approximately 7 kg / 15 lbs total force.

How to Tune

Start with the recommended external spring for your ammo power.
Add or remove buffer springs (or change to a different buffer spring size) to adjust slide full-open buffer force and slide-in-battery feel.
Always test-fire safely after changes and confirm reliable feeding and extraction before regular use.

Key Benefits

Faster follow-up shots — improved slide timing for quicker sight recovery.
Significant recoil reduction — better control and reduced muzzle rise.
Slide & frame protection — internal buffering prevents hard impacts on the frame.
Reduced jams — smoother cycle dynamics reduce failure-to-feed and related stoppages.
Customizable — 18 adjustable user settings by mixing external and buffer springs.
Lifetime Warranty — backed by the manufacturer's warranty (where applicable).

Who Should Buy

Walther PDP owners (4.5" or 5.0") who run compensators, ported slides, or varied ammo.
Competitive and duty shooters wanting faster follow-ups and reduced recoil.
Semi-auto pistol owners who want a drop-in, adjustable recoil control solution without gunsmithing.

Installation & Safety Notes

Follow the supplied installation instructions and torque specifications.
Ensure the firearm is unloaded and safe before installation.
After installation, validate function with a safe test procedure and work up through your intended ammunition types.

Technical Summary

Compatibility: Walther PDP 4.5" & 5.0" (Full Size 5.1" / Pro SD compatibility noted; not compatible with 4.0" or Pro SD 4.6").
Adjustability: 3 external springs + 6 buffer springs = 18 user-adjustable combinations.
Included: Washer, safety pin, installation instructions.
Made in: (Manufacturer details subject to change)
Warranty: Lifetime Warranty (manufacturer).

Note: DPM products are periodically updated. If you have unique modifications (threaded barrels, compensators, slide conversions), contact the manufacturer or retailer before ordering to confirm the best configuration or if a custom solution is required.
