Product Overview

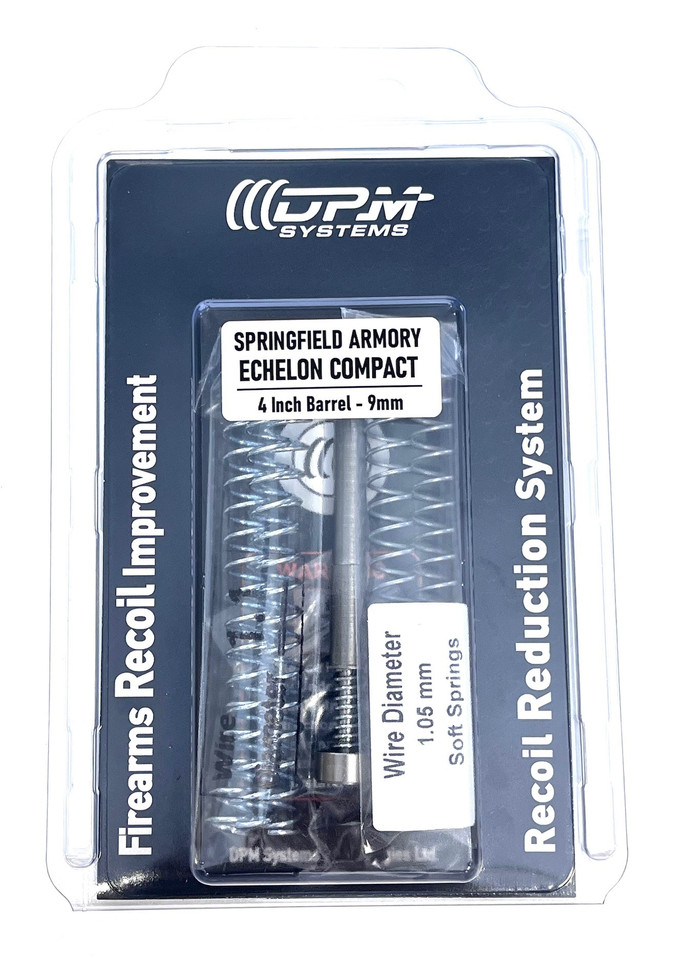

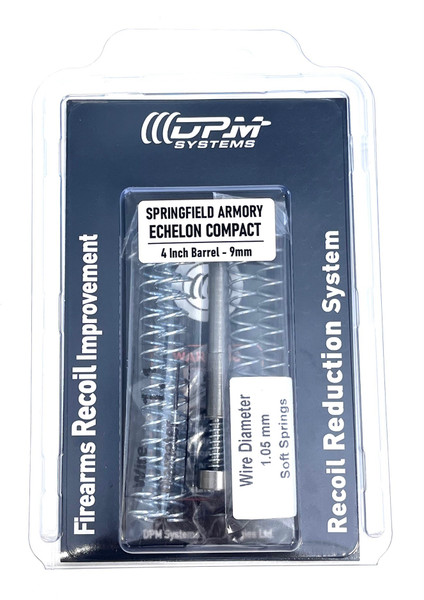

NEW (2025) DPM Mechanical Recoil Reduction System | Springfield Echelon Compact & Comp 4"
Overview: Upgrade your Springfield Echelon Compact or Comp (4") with the NEW DPM Mechanical Recoil Reduction System — a direct, drop-in replacement for the factory guide rod that lets you fine-tune slide dynamics for faster follow-ups, fewer malfunctions, and reduced felt recoil. Designed for pistols fitted with compensators, ported/comp slides, and for shooters seeking improved control and reliability.
Important
- Spring Plug (bushing) must always be installed whenever DPM recoil rod and springs are used.
- Product versions and included spring/washers may change without notice as DPM evolves their designs.
What’s Included
- DPM Recoil Reduction Rod (direct replacement)
- Multiple external springs (sets described below)
- Spring plug (bushing)
- Installation instructions
Power Rates & Settings (Performance)
Slide full open position (approx.): Total Power: 24 lbs
Slide in the battery (closed) | Soft Spring Set (1.05mm) - recommended for compensators:
- Short: 8.3 lbs
- Long : 9.25 lbs
Slide in the battery (closed) | Standard Spring Set (1.1mm):
- Short: 8.8 lbs
- Medium: 9.5 lbs
- Long: 10 lbs
Key Benefits
- Faster follow-up shots — smoother slide timing reduces reset time between shots.
- Significant recoil reduction — improved shooter control and faster sight recovery.
- Slide & frame protection — internal buffer action prevents hard impacts on the frame.
- Eliminates many common jams — tuned spring geometry improves feeding and extraction.
- Better accuracy & control — improved double-tap concentration and tighter strings.
- Adjustability — choose between soft (comp-friendly) and standard spring sets to match ammo and setup.
- Lifetime Warranty — backed by the manufacturer’s warranty for service life coverage.
Who Should Install This
- Owners of Springfield Echelon Compact & Comp 4" seeking reduced felt recoil and enhanced reliability.
- Competitive shooters using compensators and faster follow-up scenarios.
- Semi-auto pistol enthusiasts who want a drop-in, adjustable recoil system without gunsmithing.
Installation Notes & Safety
- Read and follow included installation instructions carefully before use.
- Always ensure firearm is unloaded and safe before disassembly/installation.
- Test-fire with safe backstops and progressively increase to match your chosen spring combination to your ammunition and compensator setup.
Technical Summary
- Compatibility: Springfield Echelon Compact & Comp 4" models
- Adjustability: Multiple external springs (soft set 1.05mm & standard set 1.1mm)
- Total slide-open force (approx.): 24 lbs
- Required: Spring plug (included) - must be installed
- Warranty: Lifetime Warranty
Note: Product designs and supplied spring combinations may be updated by the manufacturer without prior notice. Contact the manufacturer or your retailer for help selecting the best spring/spacer combination for your exact ammunition and compensator setup.
