Product Overview
DPM Mechanical Recoil Reduction System | S&W M&P Carry Comp 4.22" (Full Adjustable, Soft Version)
Overview: The DPM Recoil Reduction Rod (Soft Version) is a direct-fit, drop-in replacement for the factory guide rod on S&W M&P Carry Comp 4.22" pistols and other compatible M&P models. Built around a captured multi-spring rod design (three internal springs), this kit softens slide impact, reduces felt recoil, and lets you fine-tune slide-in-battery force using multiple external springs.
Compatibility
- Primary Fit: S&W M&P Carry Comp 4.22" Barrel (full adjustable soft version)
- Also Compatible With:
- SPEC SERIES V M&P® 9 METAL HD (SKU: 14284)
- 2023 SPEC SERIES M&P® 9 METAL M2.0 (SKU: 13974)
- M&P®9 M2.0 THREADED BARREL OPTICS READY FULL SIZE (SKU: 13585)
- Designed for compensators, ported slides, threaded barrels and low-power ammunition setups.
Key Benefits
- Recoil reduction: Multi-spring captured rod smooths slide impulse for softer shooting and faster follow-ups.
- Slide & frame protection: Internal buffering prevents the slide from hard impacts on the frame.
- Tunable performance: Five external springs let you match spring force to ammo, compensators, and personal preference.
- Drop-in upgrade: Direct replacement, no gunsmithing or permanent modifications required.

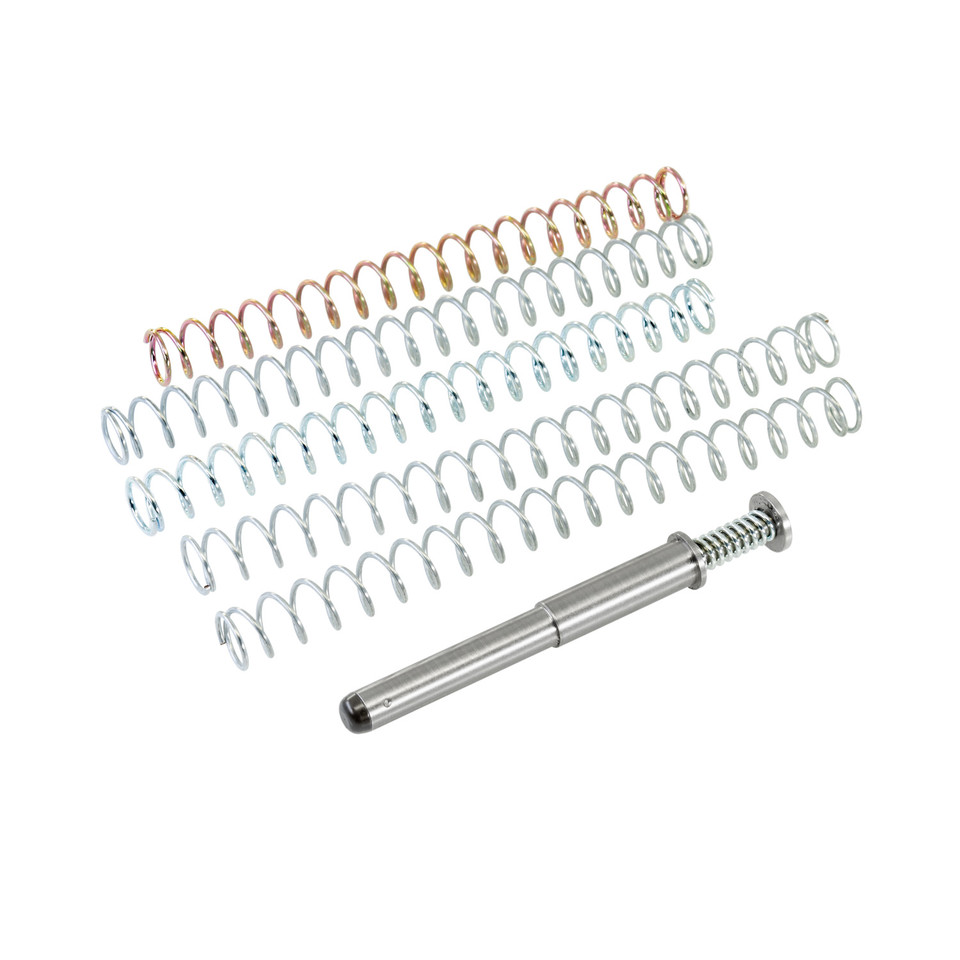

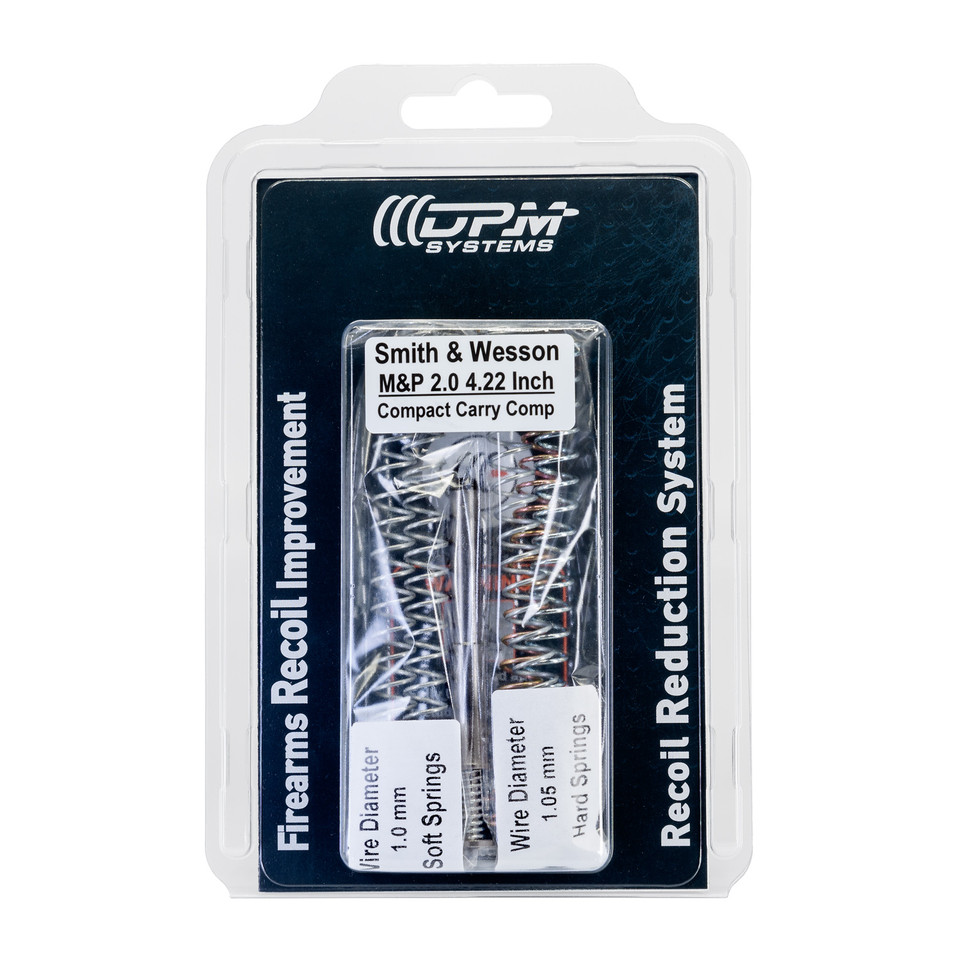

What’s Included
- 1 × DPM captured recoil reduction rod (Soft Version)
- 5 × external springs (2 × 1.00 mm long-set, 3 × 1.05 mm short-set)
- Installation instructions
Spring Power Ratings | Slide in Battery (Closed)
Long set (1.00 mm wire diameter) softer springs
- Short (1.00 mm): 3.5 kg / 7.7 lbs
- Long (1.00 mm): 3.9 kg / 8.6 lbs
Short set (1.05 mm wire diameter) heavier springs
- Short (1.05 mm): 4.0 kg / 8.8 lbs
- Medium (1.05 mm): 4.4 kg / 9.7 lbs
- Long (1.05 mm): 4.7 kg / 10.3 lbs
Total System Force | Slide Full Open Position
- Approximate total (full open): 7 kg / 15.5 lbs
Installation & Tuning Notes
- Always install per the included instructions and verify proper function before live fire.
- Use different spring combinations to optimize for compensators, ported slides, or low-power ammunition.
- If you plan slide conversions, threaded barrels, or specialized comp setups, contact info@TerranGearUSA.com for compatibility guidance.
Who Should Buy
- Owners of the S&W M&P Carry Comp 4.22" looking for a soft, tunable recoil solution.
- Competitive or tactical shooters who use compensators or low-power loads and want improved follow-ups.
- Anyone seeking a reliable, drop-in recoil upgrade with lifetime warranty backing.
Warranty & Support
- DPM patented design with manufacturer warranty (lifetime warranty claimed — verify terms with manufacturer).
- Support / custom questions: info@TerranGearUSA.com.
Quick Specs
- Product: DPM Recoil Reduction Rod (Soft Version)
- Fit: S&W M&P Carry Comp 4.22" (also listed compatibility above)
- External Springs: 5 (2 × 1.00 mm, 3 × 1.05 mm)
- Slide closed force range: ~7.7 - 10.3 lbs depending on spring
- Slide full-open total: ~15.5 lbs
- Origin: DPM Recoil Reduction Systems are used worldwide in military, law enforcement, and civilian firearms
Upgrade your M&P pistol with the DPM Systems Recoil Reduction System and feel the difference. Whether you're a seasoned professional or a dedicated enthusiast, this system is a game-changer for improving your shooting capabilities.
