DPM Systems S&W M&P Standard & M2.0 4.25"

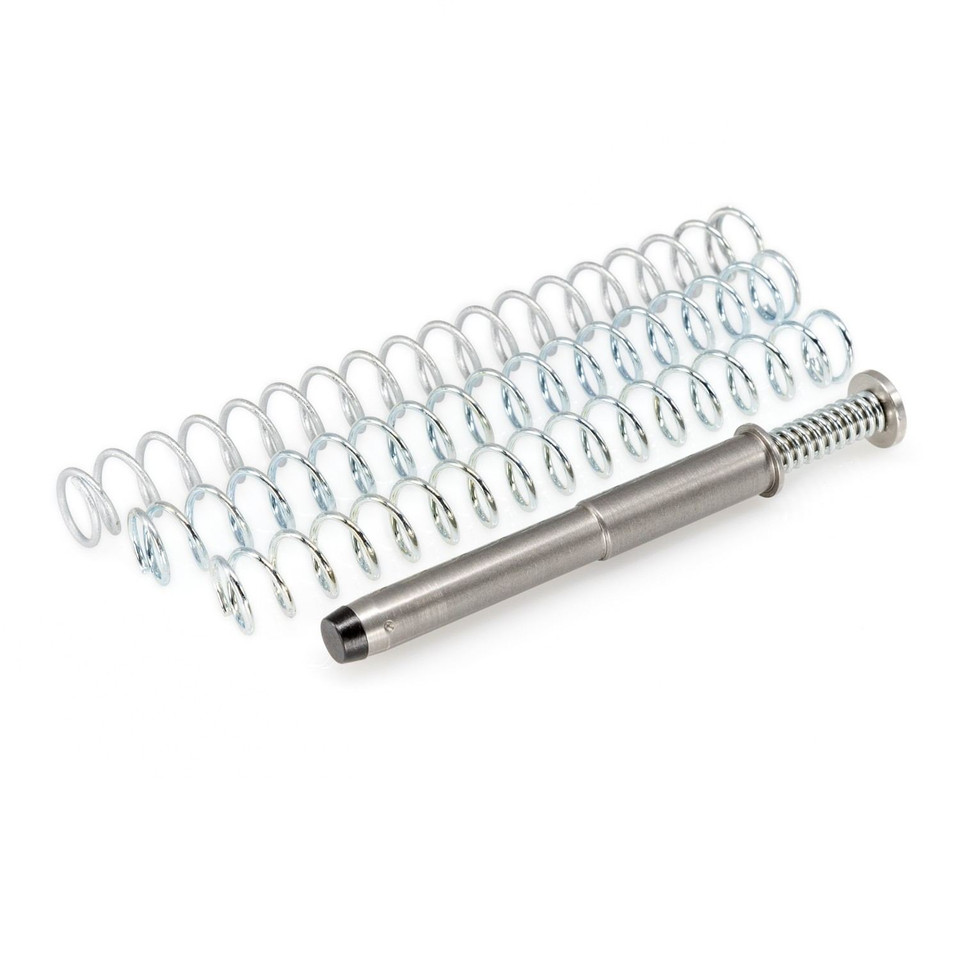

DPM Mechanical Recoil Reduction System — Smith & Wesson M&P Standard & M2.0 (4.25")

Overview: The DPM Mechanical Recoil Reduction System is a direct, drop-in replacement for the factory guide/recoil rod on Smith & Wesson M&P Standard and M&P M2.0 4.25" pistols. Built around a patented multi-spring rod design, the system smooths slide travel, reduces felt recoil, and cushions slide impact to protect the slide and frame while improving follow-up shot speed and overall controllability.

Compatibility

• Smith & Wesson M&P Standard 4.25"
• Smith & Wesson M&P M2.0 4.25"
• Also compatible with: M&P9 M2.0 Metal (SKU: 13194) and M&P40 M2.0 Metal (SKU: 14164)

What’s Included

• 1 × DPM recoil reduction rod (drop-in)
• Multiple external springs for tuning (short / medium / long)
• Installation instructions and basic tuning guidance

How It Works

The DPM rod uses a nested, multi-spring arrangement (three-spring architecture) that progressively absorbs energy during slide travel. An internal spring controls the final portion of travel to prevent the slide from hard contact with the frame. External springs let the user tune the slide-closed (battery) resistance while spacers/plugs (if included with model) change the full-open buffer force.

Power Rates — Slide in the Battery (Closed)

• Short: 8.4 lbs
• Medium: 9.0 lbs
• Long: 9.4 lbs

Total Force — Slide Full Open Position

• Approx. Total Force: 25 lbs (approx.)

Key Benefits

• Faster follow-up shots — reduces muzzle rise and improves sight recovery.
• Significant recoil reduction — smoother, more controllable shooting across ammo types.
• Slide & frame protection — buffered full-travel reduces impact stress.
• Improved reliability — helps eliminate certain types of jams and inconsistent cycling.
• Adjustable — choose spring length to match ammunition, compensators, or personal preference.
• Lifetime warranty — manufacturer support for defects and longevity.

Tuning & Installation Notes

• Always ensure the firearm is unloaded and safe before installation.
• Follow included instructions — some DPM models include plugs, washers, or multiple springs; check your kit before tuning.
• Start with the medium spring and test-fire; adjust to shorter/longer springs based on recoil, cycling, and muzzle device configuration.
• If using compensators, threaded barrels, or suppressors, consider softer spring options and verify reliable function.

Technical Summary

• Type: Drop-in mechanical recoil reduction rod (multi-spring)
• Fit: S&W M&P Standard & M2.0 — 4.25" models (also fits listed compatible M&P Metal models)
• Slide-closed (battery) forces: 8.4–9.4 lbs (short → long)
• Slide full-open (buffer): ~25 lbs total (approx.)
• Warranty: Lifetime (manufacturer)
• Origin / Notes: DPM updates designs periodically (springs, plugs, washers). Inspect supplied components and follow installation guidance.

Disclaimer: If you plan significant slide or barrel modifications (compensators, threaded barrels, ported slides, suppressors) contact the manufacturer or retailer prior to ordering to confirm the correct DPM configuration is selected for your setup.
