DPM Mechanical Recoil Reduction System | S&W M&P Shield M2.0 4" Performance Center & Shield Plus Carry Comp
Overview: The DPM Mechanical Recoil Reduction System is a direct drop-in replacement for the factory guide/recoil rod on Smith & Wesson M&P Shield M2.0 4" Performance Center and Shield Plus Carry Comp pistols. DPM’s multi-spring design smooths slide travel, cushions slide impact, and reduces felt recoil improving follow-up speed and extending the life of slide/frame contact areas without altering pistol configuration.
Compatibility
- Designed for: Smith & Wesson M&P Shield M2.0 4" Performance Center.
- Also compatible for: Shield Plus Carry Comp (OEM SKU: 13990).
What’s Included

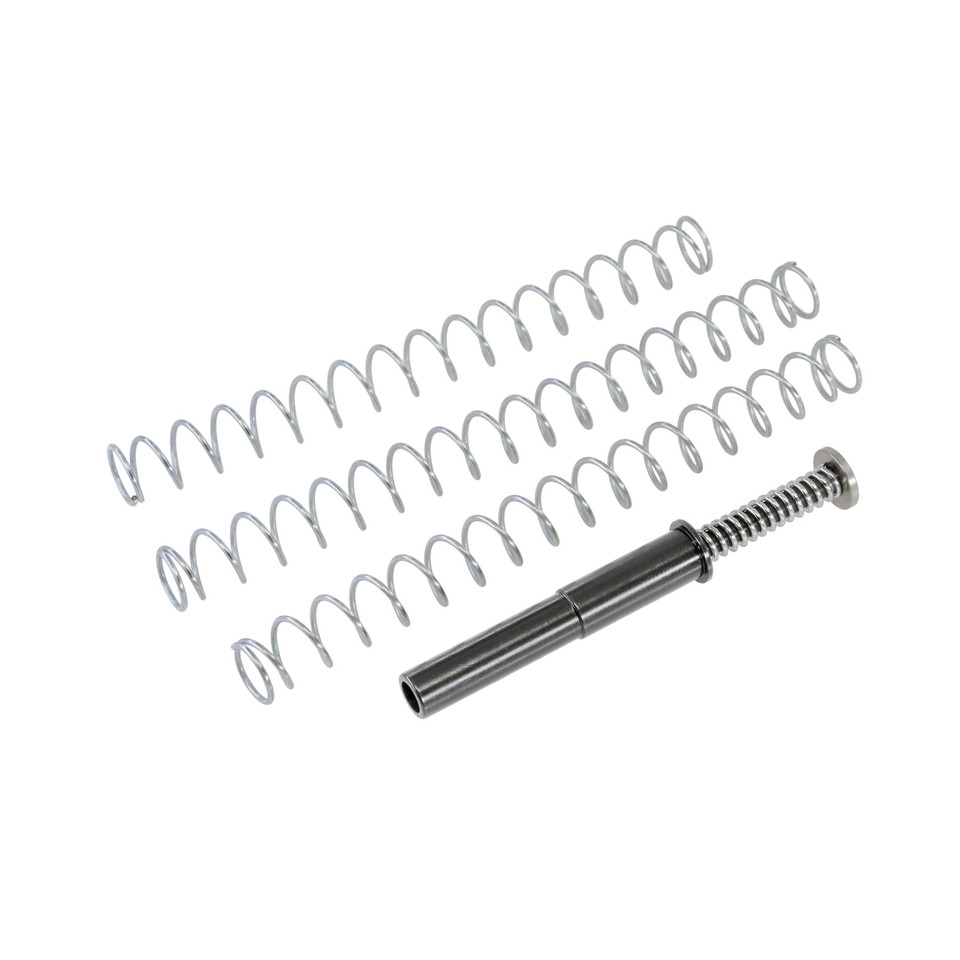

- 1 × DPM multi-spring recoil rod (drop-in)
- 3 × external tuning springs (short, medium, long)
- Installation instructions and warranty information
How It Works
DPM’s system uses an internal nested spring plus external tuning springs. The internal spring engages during the last millimeters of slide travel to absorb the slide’s final impact, while external springs control resistance when the slide is in battery. The combination reduces abrupt slide-frame impacts and smooths the recoil impulse for better control and faster follow-ups.
Power Rates — Slide in Battery (Closed)
- Short Spring: 8.4 lbs
- Medium Spring: 9.0 lbs
- Long Spring: 9.3 lbs
Total Force — Slide Full Open Position
- Approx. Total Force: 19 lbs (approx.)
Key Benefits
- Faster follow-up shots — reduced muzzle flip and improved sight recovery.
- Significant recoil reduction — smoother, more controllable recoil impulse.
- Slide & frame protection — buffered slide travel reduces impact wear.
- Improved reliability — fine-tune spring choice to your ammo and accessories.
- Lifetime warranty — manufacturer coverage for defects.
Tuning & Installation Notes
- Always clear the firearm and follow safe-handling procedures before installation.
- Install per included instructions. If unsure, start with the medium spring and test function before moving to short or long springs.
- When running compensators, threaded barrels, or suppressors, verify function and cycling with each spring choice.
- DPM product designs may change; confirm contents (springs/plugs/washers) before tuning.
Technical Summary
- Type: Drop-in mechanical recoil reduction rod (multi-spring)
- Fitment: S&W M&P Shield M2.0 4" Performance Center & Shield Plus Carry Comp
- Slide-closed forces: 8.4–9.3 lbs (short → long)
- Slide full-open force: ~19 lbs total (approx.)
- Warranty: Lifetime (manufacturer)
Note: For non-standard builds or major modifications (heavy compensators, threaded/slotted slides, ported barrels, suppressed use), contact the manufacturer or authorized dealer to confirm the correct DPM configuration for your setup or ask an armorer to assist with installation.
