Product Overview

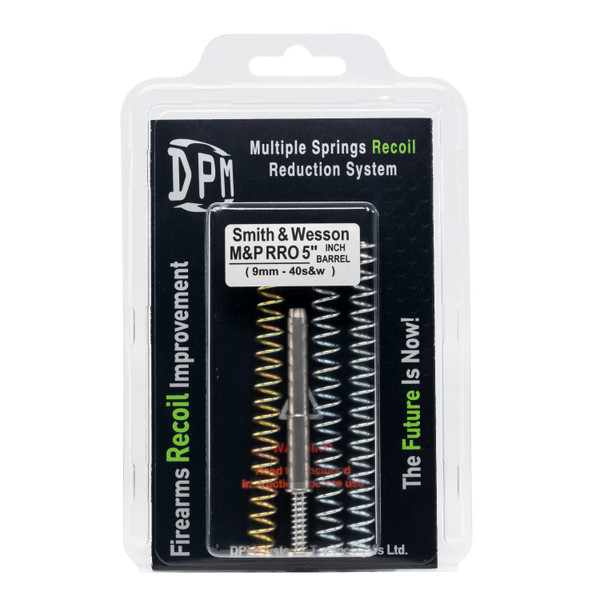

DPM Mechanical Recoil Reduction System | S&W M&P PRO & M2.0 (5" Barrel)
Overview: The DPM Mechanical Recoil Reduction System is a direct, drop-in replacement for the factory guide/recoil rod on Smith & Wesson M&P PRO and M&P M2.0 5" pistols. Built around DPM’s patented multi-spring rod architecture, this kit smooths slide travel, reduces felt recoil, cushions slide impact, and improves follow-up shot speed and overall controllability without altering pistol configuration.
Compatibility
- Smith & Wesson M&P PRO 5" barrel
- Smith & Wesson M&P M2.0 5" barrel
What’s Included
- 1 × DPM multi-spring recoil rod (drop-in)
- 3 × external tuning springs (short, medium, long)
- Installation instructions
How It Works
DPM’s system uses a nested three-spring design. An internal spring modulates the final millimeters of slide travel so the slide never hard-contacts the frame; external springs let the shooter tune the closed-slide (battery) resistance. The result: softer perceived recoil, reduced slide impact, and more consistent cycling across ammunition types.
Power Rates — Slide in the Battery (Closed)
- Short Spring: 4.08 kg / 9 lbs
- Medium Spring: 4.53 kg / 10 lbs
- Long Spring: 4.98 kg / 11 lbs
Total Force — Slide Full Open Position
- Approx. Total Force: 25–26 lbs (approx.)
Key Benefits
- Faster follow-up shots — reduced muzzle rise and faster sight recovery.
- Significant recoil reduction — smoother, more controllable shooting across loads.
- Slide & frame protection — buffered travel reduces impact stress and wear.
- Improved reliability — tuned cycling reduces certain jam types.
- Adjustability — choose spring length to match ammunition, comps, or personal preference.
- Lifetime warranty — manufacturer coverage for defects.
Tuning & Installation Notes
- Always clear the firearm and follow safe handling procedures before installing.
- Install per the included instructions and start with the medium spring, then test and adjust toward short/long springs as needed.
- If running compensators, threaded barrels, or suppressors, test function with reduced spring force and verify reliable cycling.
- Designs and supplied components may change; confirm the parts in your kit before tuning.
Technical Summary
- Type: Drop-in mechanical recoil reduction rod (multi-spring)
- Fitment: S&W M&P PRO & M2.0 — 5" barrel models
- Slide-closed forces: 9–11 lbs (short → long)
- Slide full-open force: ~25–26 lbs total (approx.)
- Warranty: Lifetime (manufacturer)
- Origin / Notes: DPM periodically updates designs; verify included springs/plugs/washers with your kit.
Disclaimer: For major slide or barrel modifications (threaded barrels, heavy comps, ported slides, suppressors), contact manufacturer/retailer to confirm the correct DPM configuration for your setup. Installation should be performed or inspected by a qualified armorer if you are not experienced with pistol disassembly.
