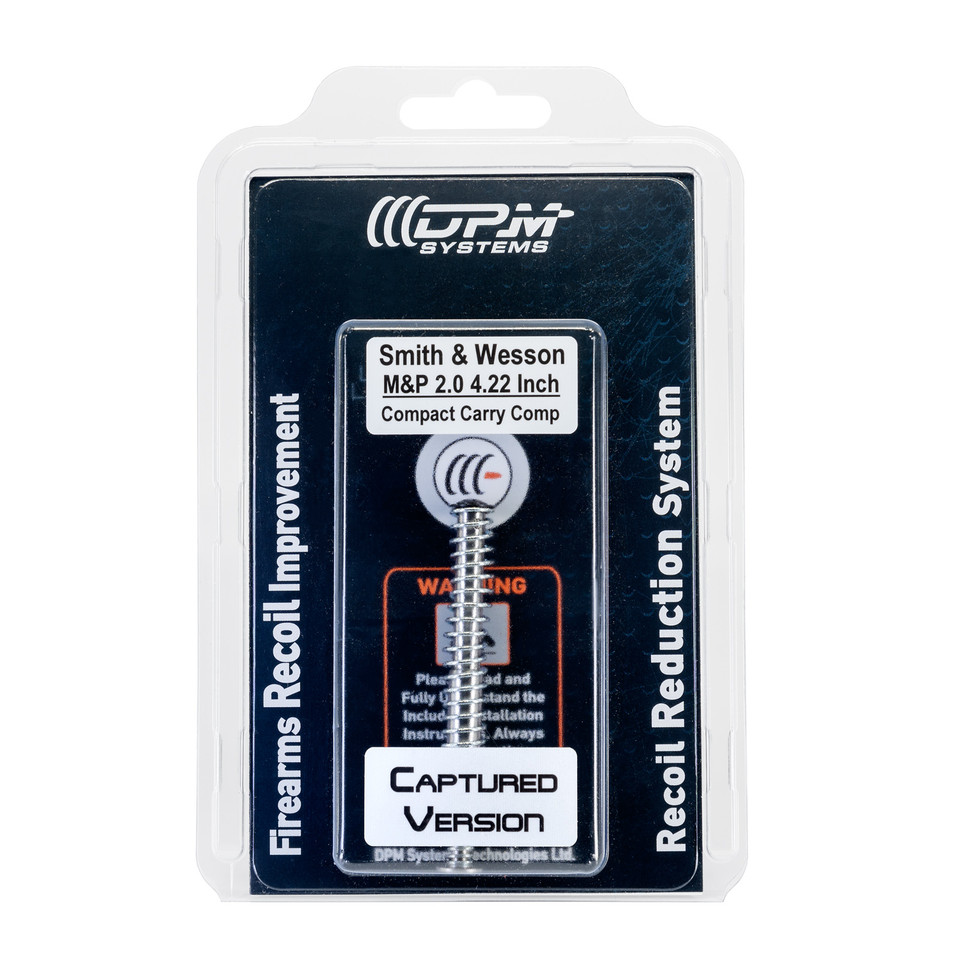

NEW DPM Captured Recoil Reduction System | S&W M&P Carry Comp 4.22" (18 lbs)

Overview: The DPM Captured Recoil Reduction System is a direct replacement for the factory guide/recoil rod on the Smith & Wesson M&P Carry Comp 4.22" barrel. This captured, multi-spring assembly cushions slide travel and acts like an internal buffer—reducing felt recoil, protecting slide/frame contact points, and smoothing follow-up shots without altering pistol geometry.

Compatibility

Designed for: Smith & Wesson M&P Carry Comp with 4.22" barrel.

What’s Included

1 × DPM captured recoil rod (drop-in)
Multiple internal/external spring elements as packaged by DPM
Installation instructions and lifetime warranty documentation

How It Works

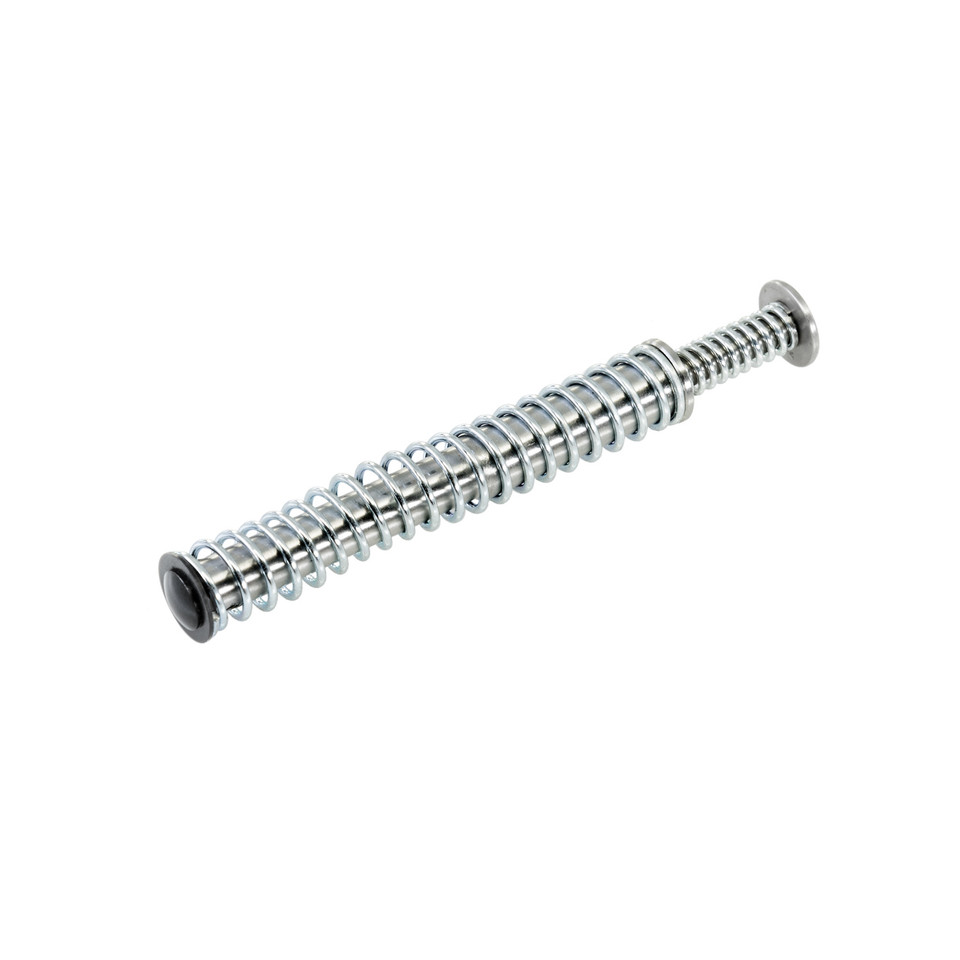

DPM’s captured system uses an intricate multi-spring rod (three springs). The inner spring and captured architecture control slide movement through the entire travel cycle — preventing the slide from ramming the frame and providing a buffered, progressive recoil impulse. In many configurations the system yields substantially higher slide end-force (buffer effect) than the OEM spring for superior protection and smoother operation.

Power Rates

Slide in battery (closed): ~10 lbs
Slide full open position (total buffered force): ~18 lbs

Key Benefits

Reduced felt recoil — smoother impulse for faster sight recovery.
Improved follow-up speed — less muzzle flip and faster shot-to-shot transitions.
Slide & frame protection — buffered slide travel reduces mechanical impact wear.
Enhanced reliability — designed to work with a range of ammunition and common modifications.
Lifetime warranty — manufacturer coverage against defects.

Tuning & Installation Notes

Always clear the firearm and follow safe-handling procedures before installing this part.
Drop-in installation — no permanent modification required in most factory configurations.
If your pistol has heavy compensators, ported slides, suppressor use, or non-standard modifications, verify function after installation and consider consulting DPM or a qualified gunsmith for optimal spring selection.
Product designs may change; inspect box contents (springs/plugs/washers) and follow included instructions.

Technical Summary

Type: Captured multi-spring recoil reduction rod
Fitment: Smith & Wesson M&P Carry Comp 4.22"
Slide-closed force: ~10 lbs
Slide full-open total force: ~18 lbs
Made in: Greece, EU
Warranty: Lifetime (manufacturer)

Note: For custom builds, threaded barrels, or unusual comp setups, contact DPM support (info@dpmsystems.com) prior to ordering to confirm the correct configuration for your firearm.
