DPM Shadow Systems CR 920 Combat & Elite

DPM Recoil Reduction System | Shadow Systems CR920 Combat & Elite

Overview: The DPM Mechanical Recoil Reduction System is a direct drop-in replacement for the factory recoil rod for Shadow Systems CR920 Combat and Elite pistols. Designed to control slide movement and reduce felt recoil, the system improves follow-up speed and protects slide and frame components without requiring any firearm modification.

Compatibility & Kit Contents

• Fitment: Shadow Systems CR920 Combat & Elite

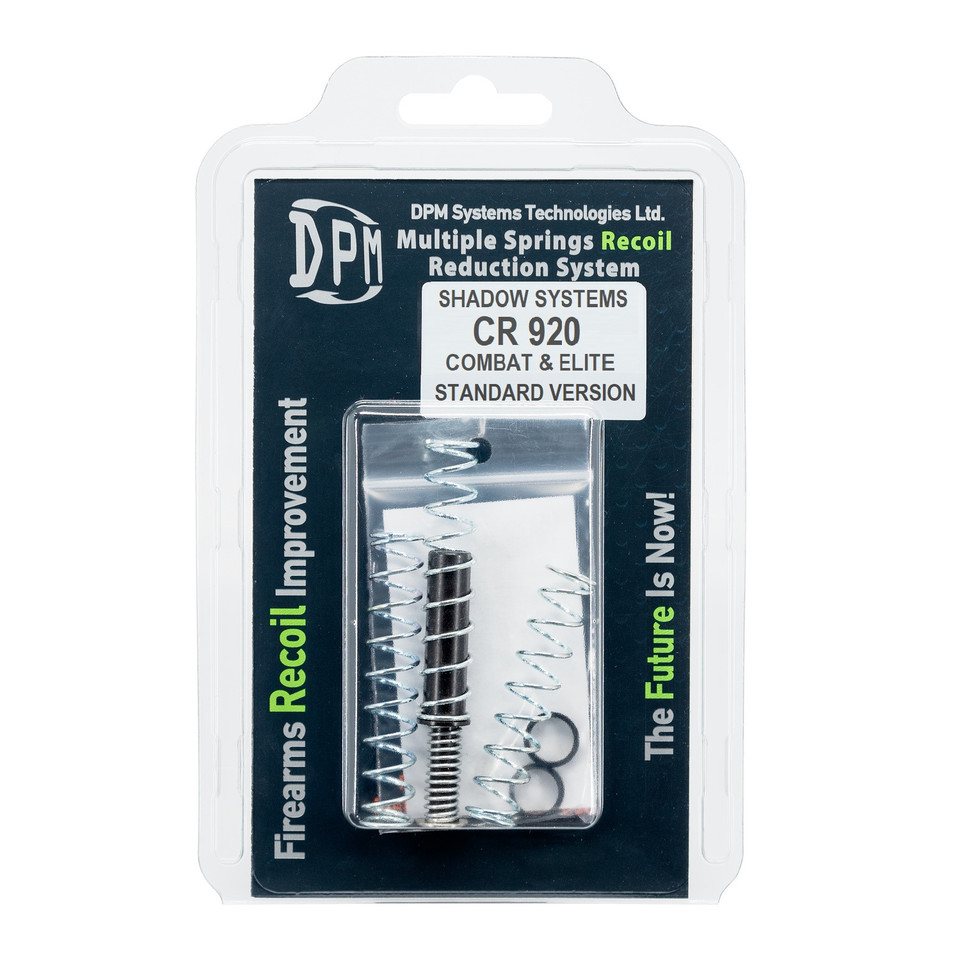

• Kit Includes: 1 × DPM recoil mechanism (captured/directional rod), 3 × external springs (short / medium / long), 2 × metallic washers (1 spare)
• Important Notice: Washer installation is optional and primarily cosmetic; the system functions without installing the washer.

Power Ratings & Adjustment

Use the spring selection to fine-tune slide closing and buffer characteristics for your ammo and preferences.

• Slide in battery (closed) — spring forces:
  • Short: 3.6 kg / 7.9 lbs
  • Medium: 3.9 kg / 8.5 lbs
  • Long: 4.2 kg / 9.25 lbs
• Slide full-open (approx.) — resulting buffer forces:
  • Short spacer result: ≈ 6.5 kg / 14.3 lbs
  • Medium spacer result: ≈ 7.5 kg / 16.5 lbs
  • Long spacer result: ≈ 8.5 kg / 18.7 lbs

Key Benefits

• Faster follow-up shots — reduced recoil and smoother cycling improve target reacquisition.
• Slide & frame protection — buffered slide travel reduces violent impacts and component wear.
• Elimination of common jams — improved slide control helps prevent malfunctions.
• Fine-tunable performance — multiple spring options let you match the system to ammo and setup.
• Lifetime warranty — backed by manufacturer warranty for defects.

Installation & Safety

• Always unload and clear the firearm before beginning any installation.
• System is drop-in and requires no permanent modifications to the pistol.
• Test-fire with selected spring combination to confirm reliable cycling with your ammunition and configuration.
• If you use compensators, suppressors, or other slide modifications, contact the vendor or DPM to confirm compatibility or select a kit designed for compensators.

Technical Summary

• Product Type: Mechanical recoil reduction rod (direct replacement)
• Intended Platforms: Shadow Systems CR920 Combat & Elite (9mm)
• Adjustability: 3 external springs + optional washers (washer cosmetic/optional)
• Slide Closed Forces: 7.9–9.25 lbs (depending on spring)
• Slide Full-Open Buffer: ~14.3–18.7 lbs (depending on spacing/washer)
• Warranty: Lifetime

Manufacturer note: DPM continuously improves product designs — kit contents and specifications may change without prior notice. Contact DPM or your Terran Gear USA associate for questions on fitment or to confirm the correct kit for non-standard configurations.
