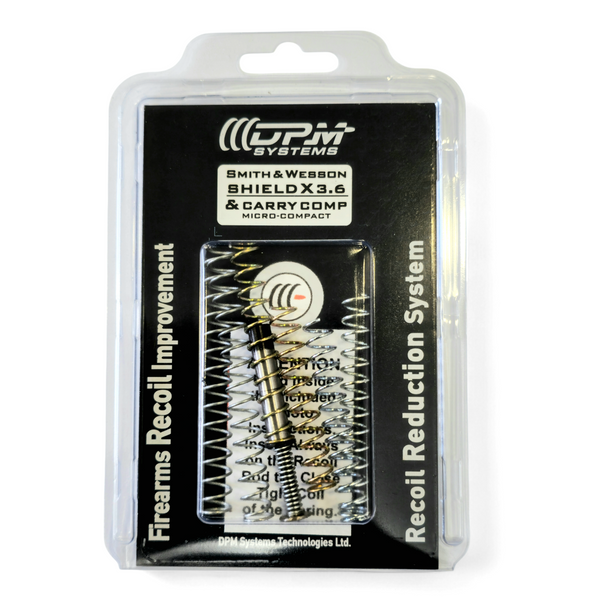

DPM Recoil Reduction System - Smith & Wesson M&P Shield X 3.6" & Carry Comp
$109.99MSRP: $111.00DPM Recoil Reduction System for Smith & Wesson M&P Shield X 3.6" & Shield X Carry Comp 3.6" The DPM Recoil Reduction System (SKU: 1000399, EAN: 5213007223999, MPN: MS-S&W/22) is a... -
DPM Recoil Reduction System - FN Herstal FNX .45ACP 4.5″ & Tactical 5.3″ Barrel
$108.99Unlock Superior Performance: DPM Mechanical Recoil Reduction System for FN Herstal FNX .45ACP Compatible exclusively with FN Herstal FNX .45ACP pistols featuring 4.5-inch barrels and FNX Tactical...
Description
DPM Mechanical Recoil Reduction System for Staccato HD C 3.6" and HD C4X Bull Barrel
Upgrade your Staccato HD C 3.6 inch or HD C4X bull barrel pistol with the advanced DPM Mechanical Recoil Reduction System. This precision-engineered drop-in upgrade delivers smoother operation, significantly reduced recoil, and faster follow-up shots while protecting your slide and frame.
Designed specifically for the Staccato HD C series, the DPM system features a progressive triple-spring mechanism that gradually absorbs slide energy. This results in less muzzle flip, quicker target reacquisition, and improved control, making it ideal for concealed carry, range training, and competitive shooting with your compact 9mm Staccato 2011 platform.
Important Installation Note
The factory OEM spring plug must remain installed when using the DPM Recoil Reduction System for proper function and safety.
Available Spring Configurations

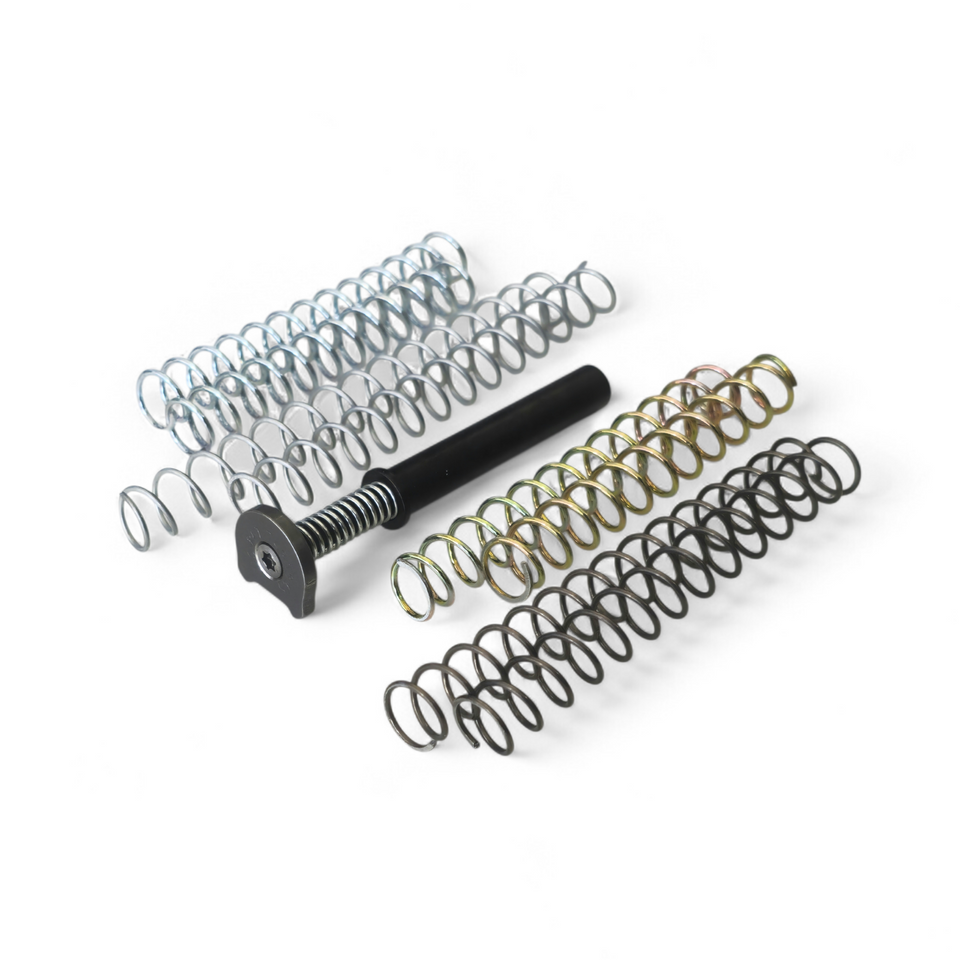

Each DPM kit includes short and long external springs, allowing you to fine-tune recoil characteristics to match your ammunition, shooting style, and setup. Spring ratings are as follows:
- 0.95 mm wire diameter (Gray Color):
Slide in battery: Short 5 lb, Long 6 lb
Slide fully open: Short 10 lb, Long 11 lb - 1.0 mm wire diameter (Black Color):
Slide in battery: Short 5.7 lb, Long 6.4 lb
Slide fully open: Short 11 lb, Long 12.1 lb - 1.05 mm wire diameter (Gold Color):
Slide in battery: Short 6.6 lb, Long 7.4 lb
Slide fully open: Short 13.2 lb, Long 14.3 lb - 1.10 mm wire diameter (Silver Color):
Slide in battery: Short 7.3 lb, Long 8.15 lb
Slide fully open: Short 15.4 lb, Long 16.5 lb
Key Benefits
- Faster follow-up shots and improved firing speed
- Significant recoil reduction with minimal muzzle rise
- Better double-tap concentration and greater accuracy
- Enhanced slide and frame protection
- Reduced risk of jams for reliable performance
- Smoother, more controllable shooting experience
This fully captured mechanical system requires no gunsmithing and works seamlessly with both stock and heavily modified Staccato HD C platforms. Backed by a Lifetime Warranty and proudly made in Greece, EU.
Note: For compensated setups, threaded barrels, slide conversions, or other custom modifications, please contact DPM Systems at info@dpmsystems.com before ordering to determine if a custom version is required.
SKU: 1000394
EAN: 5213007223944
MPN: MS-STACC-HDC3.6
Frequently Asked Questions
1. Will the DPM Recoil Reduction System fit my modified Staccato HD C 3.6" or HD C4X?
Yes. The system is engineered for both OEM and heavily modified platforms. If you have a compensator, threaded barrel, slide conversion, or other modifications, contact DPM Systems via email before purchasing to confirm compatibility or request a custom solution.
2. Do I need to remove the OEM spring plug during installation?
No. The original factory spring plug must always stay installed with the DPM system to ensure correct function and safety.
3. How do I select the best spring weight for my Staccato HD C?
Most shooters start with the 1.0 mm Black or 1.05 mm Gold springs as a balanced option. Lighter springs (Gray) emphasize speed and soft shooting, while heavier springs (Silver) maximize recoil reduction and muzzle control. Test different combinations at the range with your preferred ammunition to find the optimal setup.
4. Is installation difficult on the Staccato HD C series?
Installation is simple and drop-in with no gunsmithing required. Replace your stock recoil assembly while keeping the OEM spring plug in place. Clear instructions are included with every kit.
5. How does the DPM system improve performance compared to the factory Staccato recoil setup?
The DPM uses a patented progressive triple-spring design that smoothly counters slide inertia throughout its travel. This delivers noticeably less muzzle flip, faster follow-up shots, tighter double-tap groups, and better overall control than standard single or flat-wire springs.
