DPM Recoil Reduction Spring Kit - Sig P320X Full Size 4.7"

DPM Mechanical Recoil Reduction System for SIG Sauer P320 X Full Size 4.7 Inch Barrel

Unlock smoother performance and superior recoil control with the DPM Mechanical Recoil Reduction System for the SIG Sauer P320 X Full Size 4.7 inch barrel platform. This multi spring guide rod assembly is a direct drop in replacement for the factory recoil rod. Installation requires no permanent modifications while giving shooters the ability to fine tune recoil impulse for personal preference or competitive performance.

Compatibility

• SIG Sauer P320 X Full Size, 4.7 inch Barrel
• SIG Sauer P320 AXG Pro, 4.7 inch Barrel
• SIG Sauer P320 X-VTAC, 4.7 inch Barrel

Adjustable Recoil Settings

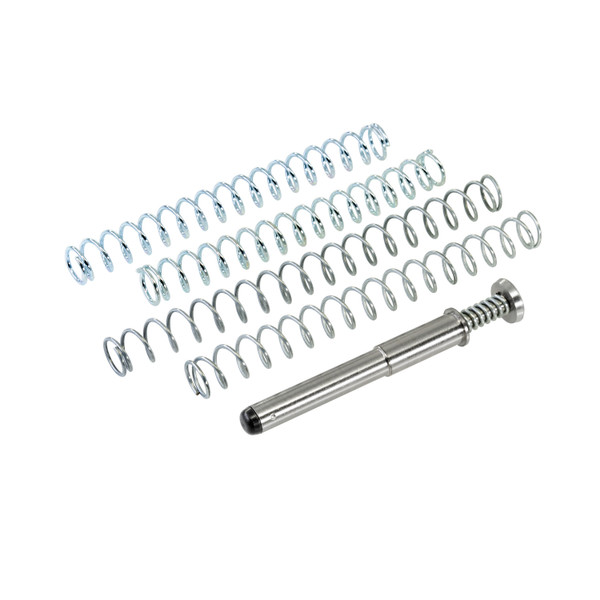

This system ships with 3 spring plugs and 3 external springs, giving you a total of 9 user adjustable recoil settings. Adjust the system to accommodate defensive loads, range ammo, competition handloads, or personal shooting style. The longer spring has more coils, which increases resistance and provides a higher pound rating compared to the shorter spring.

Power Ratings

Slide in Battery (Idle Position)

• Short Spring: 3.7 kg / 8.1 lbs
• Medium Spring: 4.0 kg / 8.8 lbs
• Long Spring: 4.3 kg / 9.4 lbs

Total Power (Slide at Full Open Position)

• Short Plug: approx. 18 lbs
• Medium Plug: approx. 22 lbs
• Long Plug: approx. 24 lbs

Important: The spring plug must always be installed when the DPM guide rod and springs are in use. Product configurations may evolve as DPM advances recoil reduction technology. Your system may include updated springs, plugs, or washers.

Key Performance Advantages

• Faster follow up shots
• Smoother cycling and improved firing speed
• Reduced felt recoil and muzzle movement
• Enhanced slide and frame protection
• Reduced risk of jams or cycling malfunctions
• Improved double tap accuracy and target transitions
• Lifetime warranty from DPM Systems Technologies

Installation Reminder: Read and follow the included installation instructions before use.
