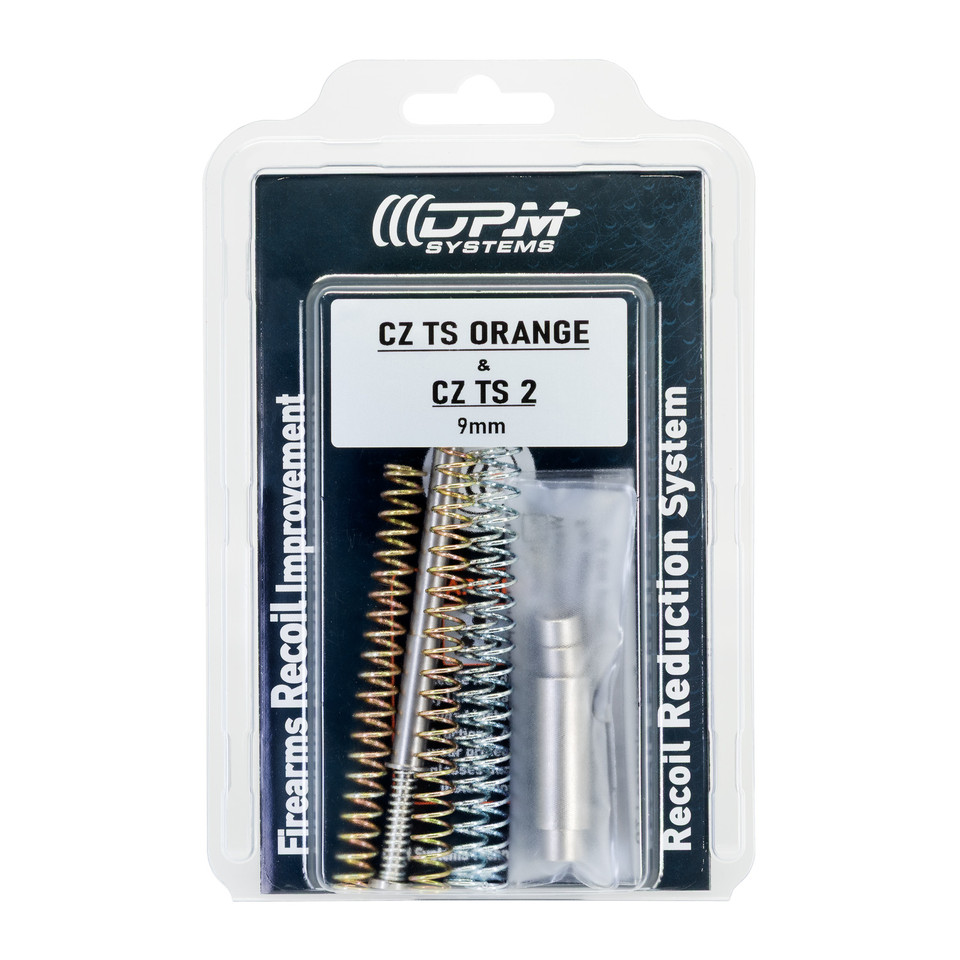

DPM Mechanical Recoil Reduction System for CZ TS 2 & TS Orange (12 Combinations)

DPM Mechanical Recoil Reduction System for CZ TS 2 & TS Orange (12 Combinations)

Direct drop-in replacement for the factory recoil rod — the DPM Mechanical Recoil Reduction Rod installs without changing pistol configuration and gives shooters fine-tunable recoil control for CZ TS 2 and TS Orange 9mm pistols.

How it works

This system uses a multi-spring, three-spring rod where the internal (third) spring controls slide movement to prevent the slide from ramming the frame. The kit includes four externally powered springs and three spacer options so you can tune both the slide-in-battery (closing) force and the total slide-open force.

External Spring Power Rates (Slide in battery / closed)

• S1 — Gold Short (23.5 coils): 5.7 lbs
• S2 — Gold Long (25 coils): 6.6 lbs
• S3 — Silver Short (23.5 coils): 7.3 lbs
• S4 — Silver Long (25 coils): 8.4 lbs

Spacer Power Rates (Slide full open position)

Note: Spacers work only with the DPM spring plug included in the kit.

• Short Spacer: ~15 lbs (approx.)
• Medium Spacer: ~19 lbs (approx.)
• Long Spacer: ~23 lbs (approx.)

Key Benefits

• Faster follow-up shots
• Improved firing speed and reset feel
• Slide & frame protection (reduced battering)
• Reduced jamming risk and smoother cycling
• Reduced felt recoil for better control and accuracy
• Tunable system with 12 possible spring/spacer combinations
• Backed by DPM lifetime warranty

Notes & Compatibility

• Wire diameter of external springs: 1.0 mm.
• Always follow included installation instructions — improper installation may affect function and safety.
• Product versions and component sets may change as DPM refines designs (springs, plugs, washers, etc.).
• Made in Greece — EU.
